Setup Your Bitaxe in Minutes

Welcome to your new mining journey. Follow this step-by-step guide to get your Bitaxe running and start earning Bitcoin.

Start Setup Guide

Before You Begin

Quick Checklist (1-10 minutes)

2.4 GHz Wi-Fi network available

USB-C power supply included

Pool wallet address ready

Good ventilation in location

Installation Guide

Hardware Assembly

Step 01

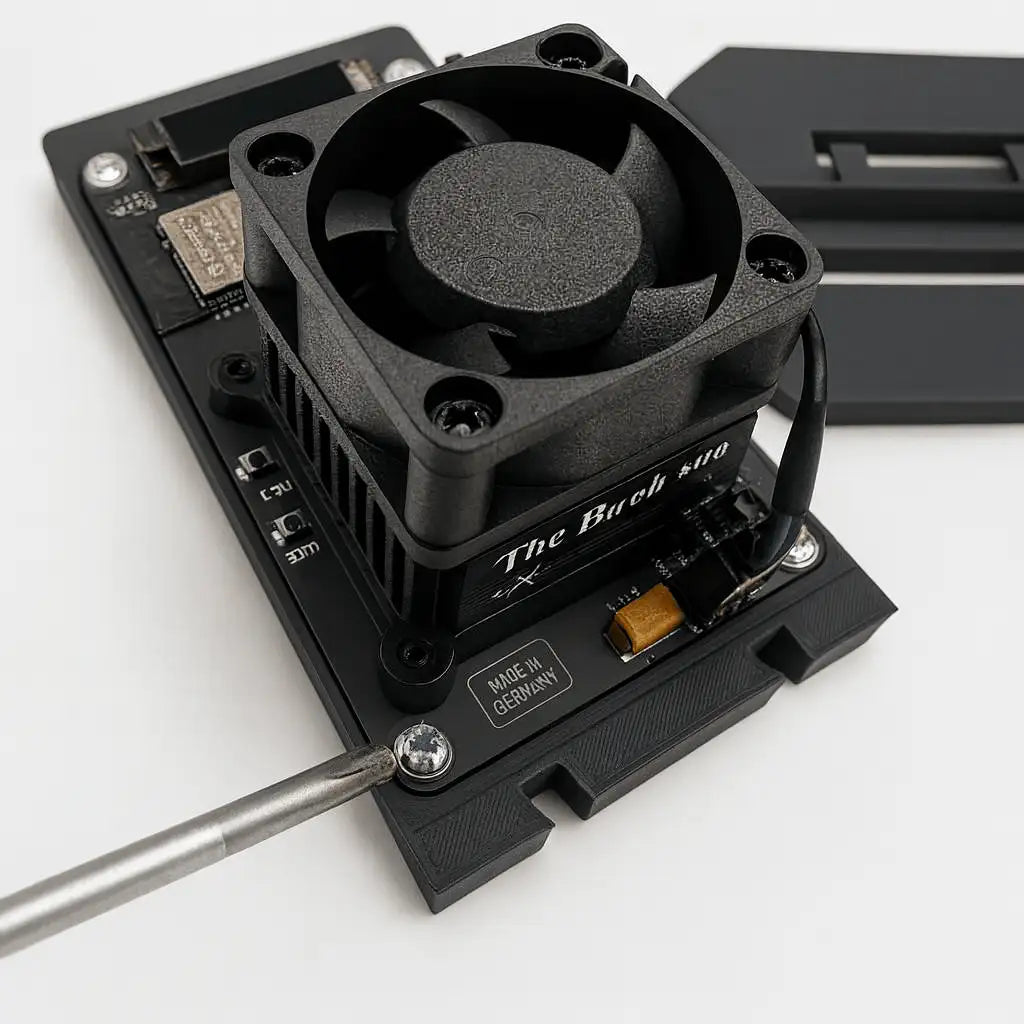

Attach the Stand

Carefully mount the aluminum stand to the back of your Bitaxe using the included screws. This provides stability and optimal airflow for cooling.

Ensure the stand is firmly attached before proceeding to avoid any wobbling during operation.

Step 02

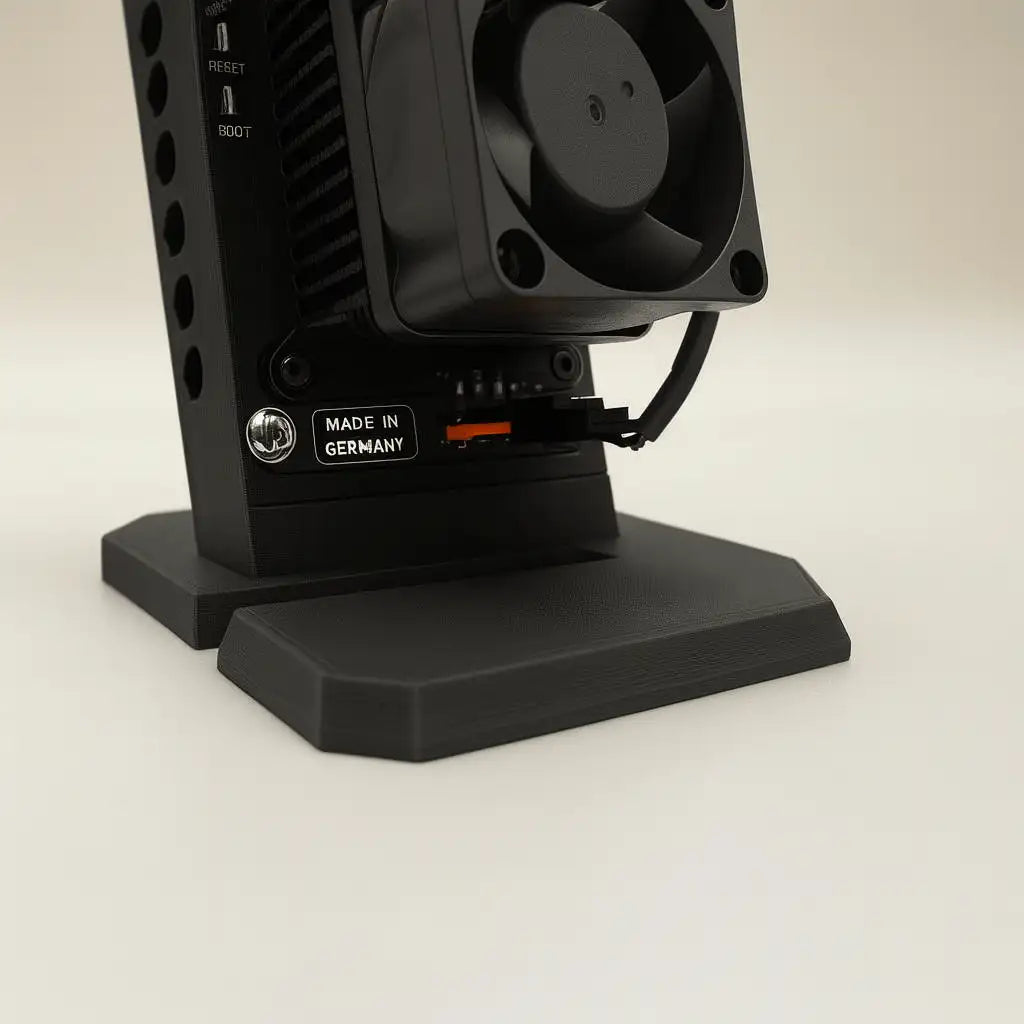

Attach the Base

Connect the heatsink base to the main board. Make sure all thermal pads are properly aligned for optimal heat dissipation.

Apply gentle pressure when attaching to ensure good thermal contact without damaging components.

Step 03

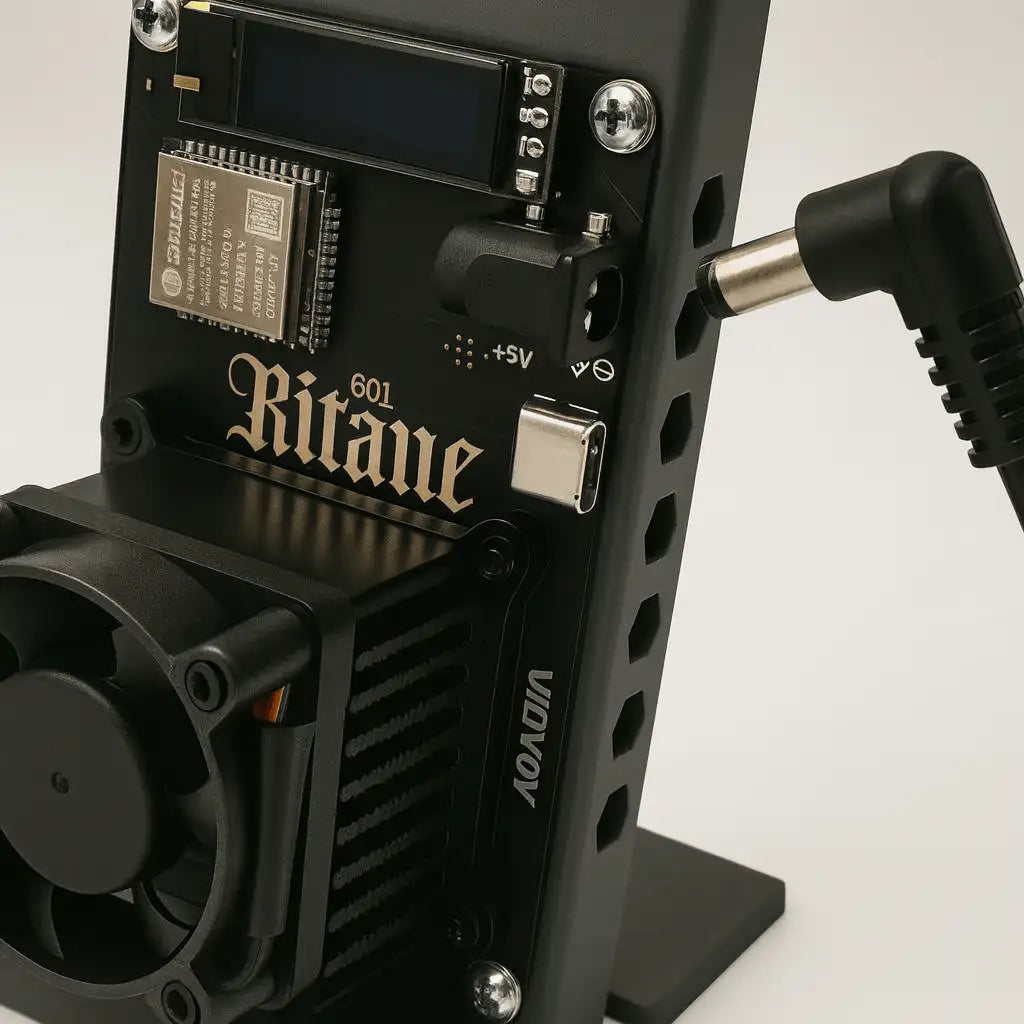

Plug In Power

Connect the included USB-C power supply. The device will automatically boot up and the display will show initialization progress.

Use only the provided power supply. Third-party adapters may not deliver adequate power.

Step 04

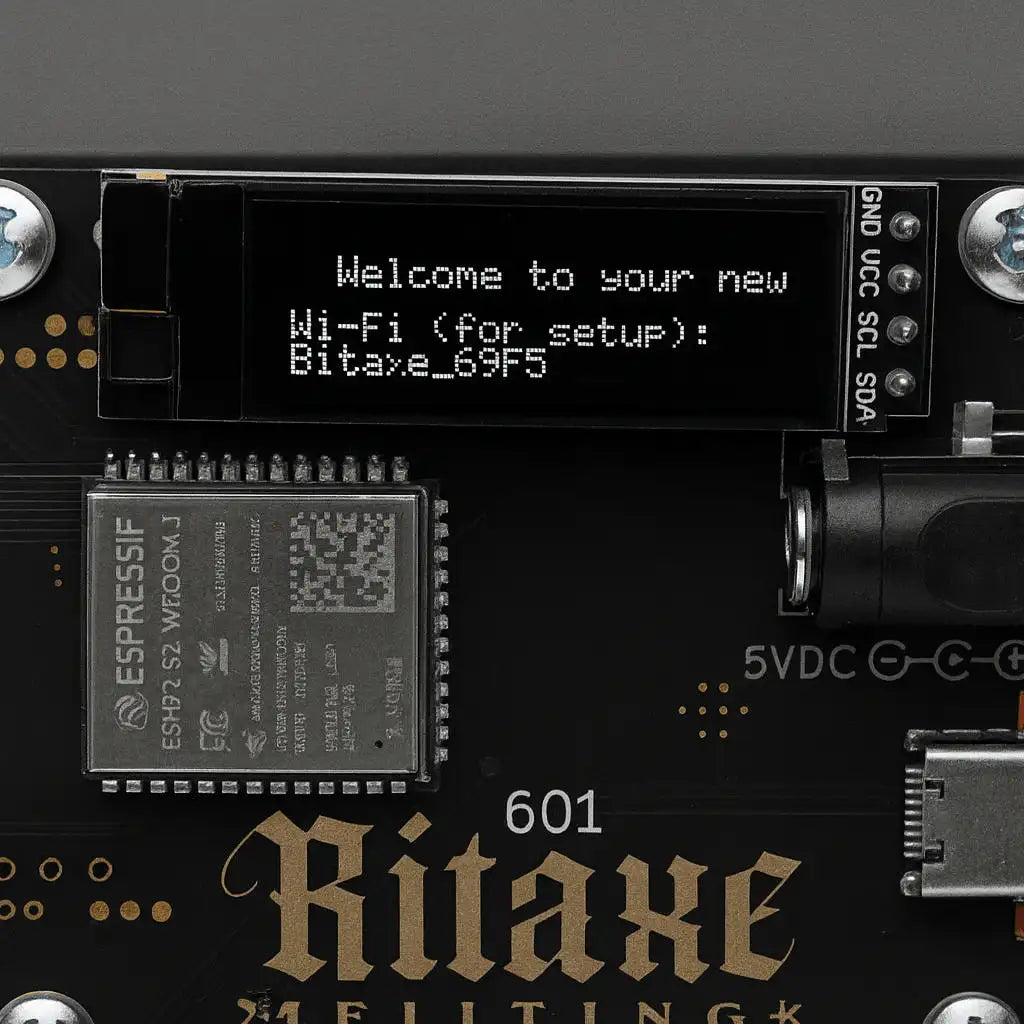

Connect to Wi-Fi

On first boot, the Bitaxe creates its own Wi-Fi network. Connect to it from your phone or computer and configure your home network credentials.

The Bitaxe only supports 2.4 GHz networks. Make sure you're not connecting to a 5 GHz band.

Software Setup

Configure Your Miner

Step 05

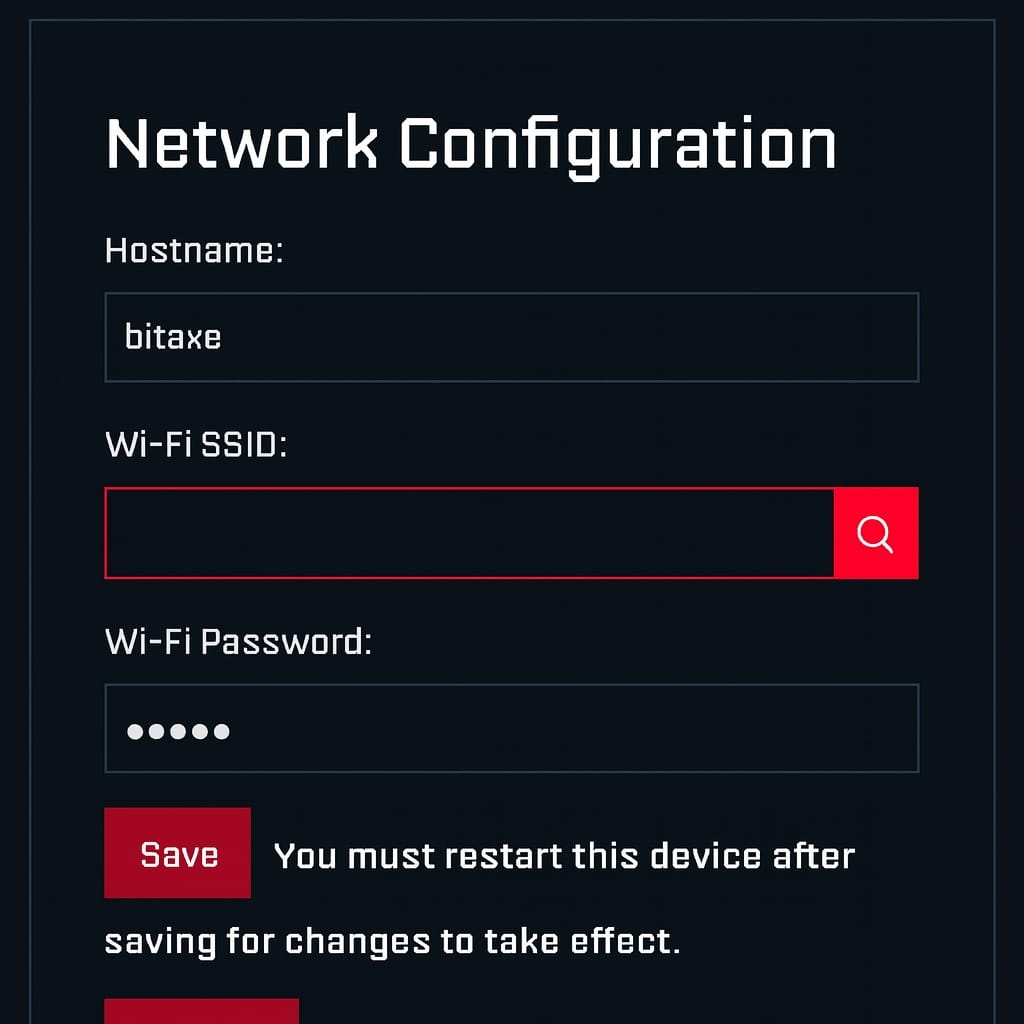

Network Configuration

Enter your Wi-Fi credentials and set a custom hostname for easy identification on your network.

Hostname Bitaxe

Wi-Fi SSID Your_Network

Password ••••••••

You must restart the device after saving for changes to take effect.

Step 06

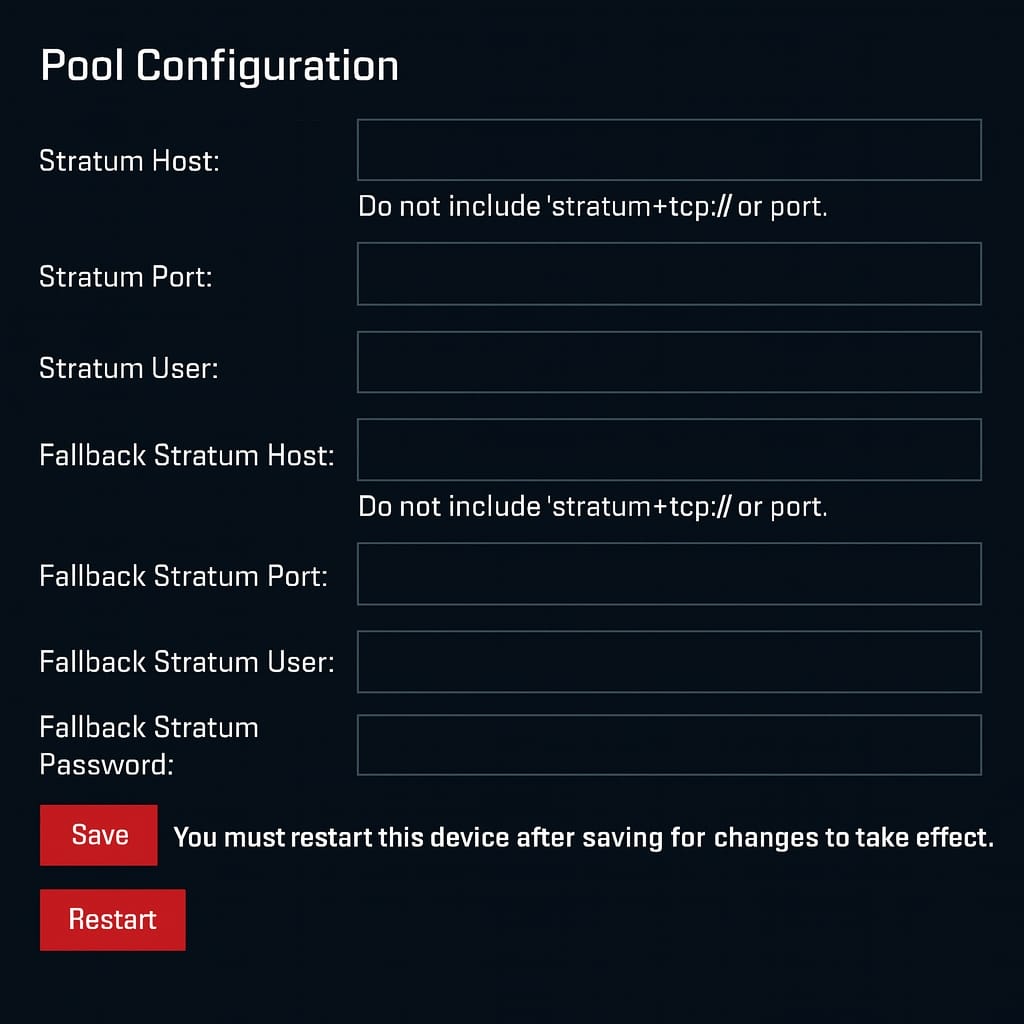

Pool Configuration

Configure your mining pool settings. Enter your Bitcoin wallet address and select your preferred pool.

Stratum URL public-pool.io

Port 21496

Wallet bc1q...

Restart required after pool configuration changes.

Step 07

View the Display

Once configured, your Bitaxe display shows real-time mining statistics. You can monitor hashrate, efficiency, temperature, and network status at a glance.

Hash Rate

1.42 TH/s

Efficiency

21.5 J/TH

Temperature

58 °C

Uptime

99.8 %

Step 08

Access via Browser

Access the full web dashboard by entering your Bitaxe's IP address in any browser. View detailed statistics, adjust settings, and monitor your mining operation remotely.

Ready to Start Mining?

Your Bitaxe is now configured and ready to earn Bitcoin. Join the decentralized mining revolution.
